External 箱外

Weights 重量

Length长度

Width宽度

Height高度

Max Gross Weight最大总重

Tare Weight

自重

Max Payload

最大载重

12192mm

2438mm

2896mm

30,480KGS

13,660KGS

16,820KGS

40’

8’

9’-6’’

Internal 箱内

Door Opening 开门尺寸

Allowable Stacking Weight

允许堆码重量

Cubic Capacity

容积

Length长度

Width宽度

Height高度

Width   宽度

Height   高度

192,000

66.7m³

11829mm

2226mm

2630mm

2,226mm

2,611mm

Special Feature 特点

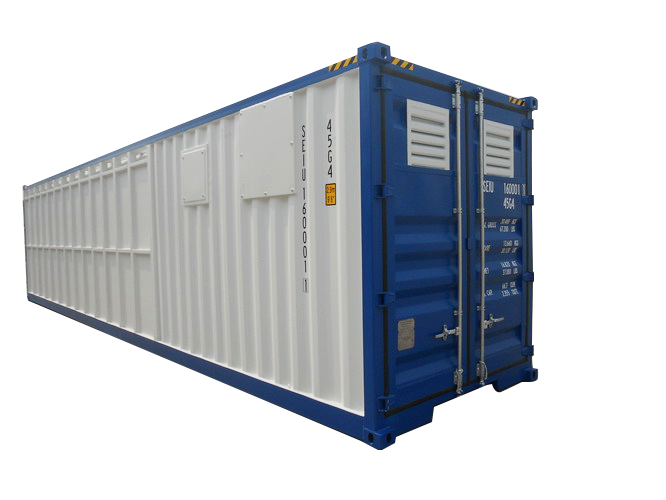

1. This container is divided into two part, one is   tank,another one is operation room,the whole container installed with   50mm    thickness sandwich panel.

   此设备箱主要分为两部分，一部分为罐体，另一部分为机械操作间。整个集装箱的内部采用50mm厚的玻璃棉进行保温。

2. There are two divided   part for tank and two hatches on the top of tank.fully welding was used for   the whole tank.

   罐体部分分为左右两个分离的罐体，每个罐体顶部含有两个人字孔，方便人进入。整个罐体采用密封焊接。

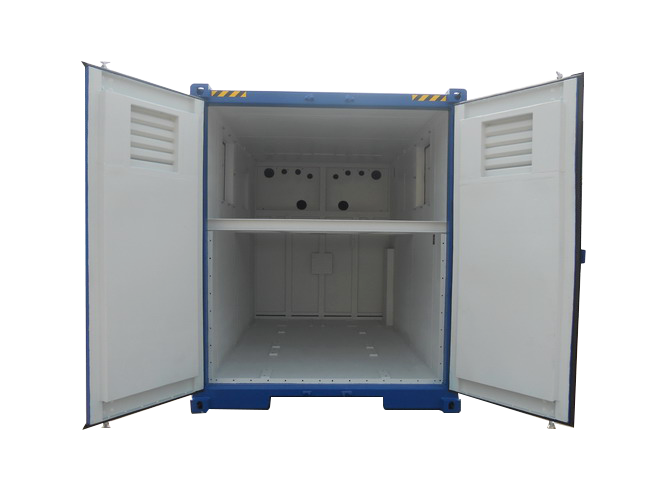

3. The internal of container was equipped with fixture   for machine installation with fully welding procedure.there are two   ventilated window in the rear end.

  机械操作间部分内部含有装机器的固定座。在集装箱的后端含有两个通气窗。内部均为密封焊接。
