External 箱外

Weights 重量

Length长度

Width宽度

Height高度

Max Gross Weight最大总重

Tare Weight

自重

Max Payload

最大载重

9,780 mm

3,433 mm

3,900 mm

30,480 kg

9,500 kg

20,980 kg

32’-1 3/64”

11’-3 5/32”

12’-9 35/64”

67,200 Lbs

20,940 Lbs

46,260 Lbs

Internal 箱内

Side Door Opening 侧开门尺寸

Length   长度

Width   宽度

Height   高度

Width   宽度

Height   高度

9,223 mm

3,265 mm

3,639 mm

7,509 mm

3,569 mm

30’-3 7/64”

10’-8 35/64”

11’-11 17/64”

24’-7 5/8”

11’-8 33/64”

Allowable Stacking Weight 允许堆码重量

Cubic Capacity 容积

60,960 kg

134,390 Lbs

108.9 M³

3848 FT³

Special Feature 特点

Recessed   D-ring on 4 corner post.

在4个角柱上设有D型环。

Ring-pull   nuts are provided under the floor board.

地板下设有预埋拉环螺母。

Recessed   type lamps provided on the roof.

箱内配照明系统。

Side lashing rails fixed on the side linings.

侧板及侧门上配固货系统。

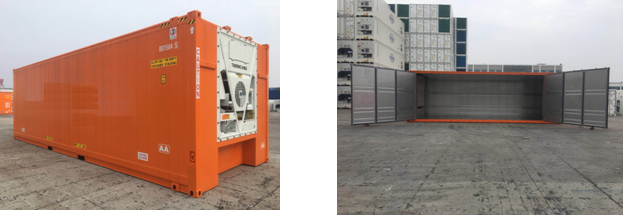

Side panel has two small doors.

侧板配有两个小门

The size of this type of reefer can be customized   according to requirements, within 3.6m width and 3.9m in height.

此类箱型尺寸可根据需求定制，宽度3.6m内，高度3.9m内。
